Descripción
Designación de la familia: TXSW15 Fresa de gran avance con gran profundidad de corte; Tipo de orificio.
Item Designation: TXSW15M063B22.0R04

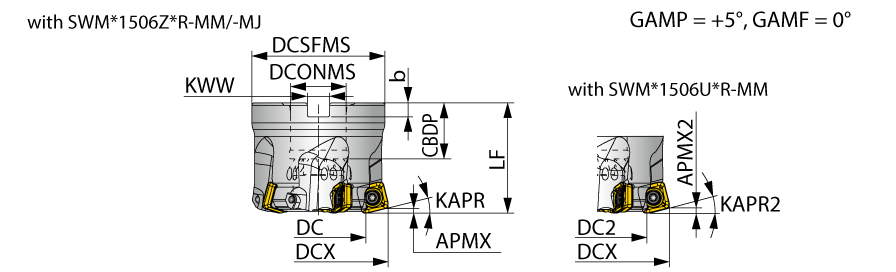

| CICT | APMX | APMX_2 | DC | DC_2 | DCX | DCONMS | CBDP | DCSFMS | KWW | b | LF | KAPR | KAPR_2 | WT (kg) |
CSP | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 2.50 | 2.00 | 37.10 | 35.20 | 63.00 | 22.000 | 20.000 | 59.00 | 10.40 | 6.30 | 50.00 | 14.0 | 10.0 | 0.66 | With air hole | SWMT1506ZER-MJ |
Vinculo a insertos
| Spare Parts | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4351710 | TS50115I | Screw | Insert clamping screw. Recommended torque for clamping: 5.0 Nm |  |
||||||||
 |
7002090 | BT20S | Torx bit | Torx bit for insert clamping screw | |
||||||||
 |
6594469 | H-TB2W | Grip | |
|||||||||
 |
7003176 | M-1000 | Lubricant | |
|||||||||
 |
6821393 | FSHM10-40H | Center bolt |
